Final Packaging Machine ETIL/ETIS

Final Packaging Machine for Trays with Lid

The perfect solution for precise tray lid packaging.

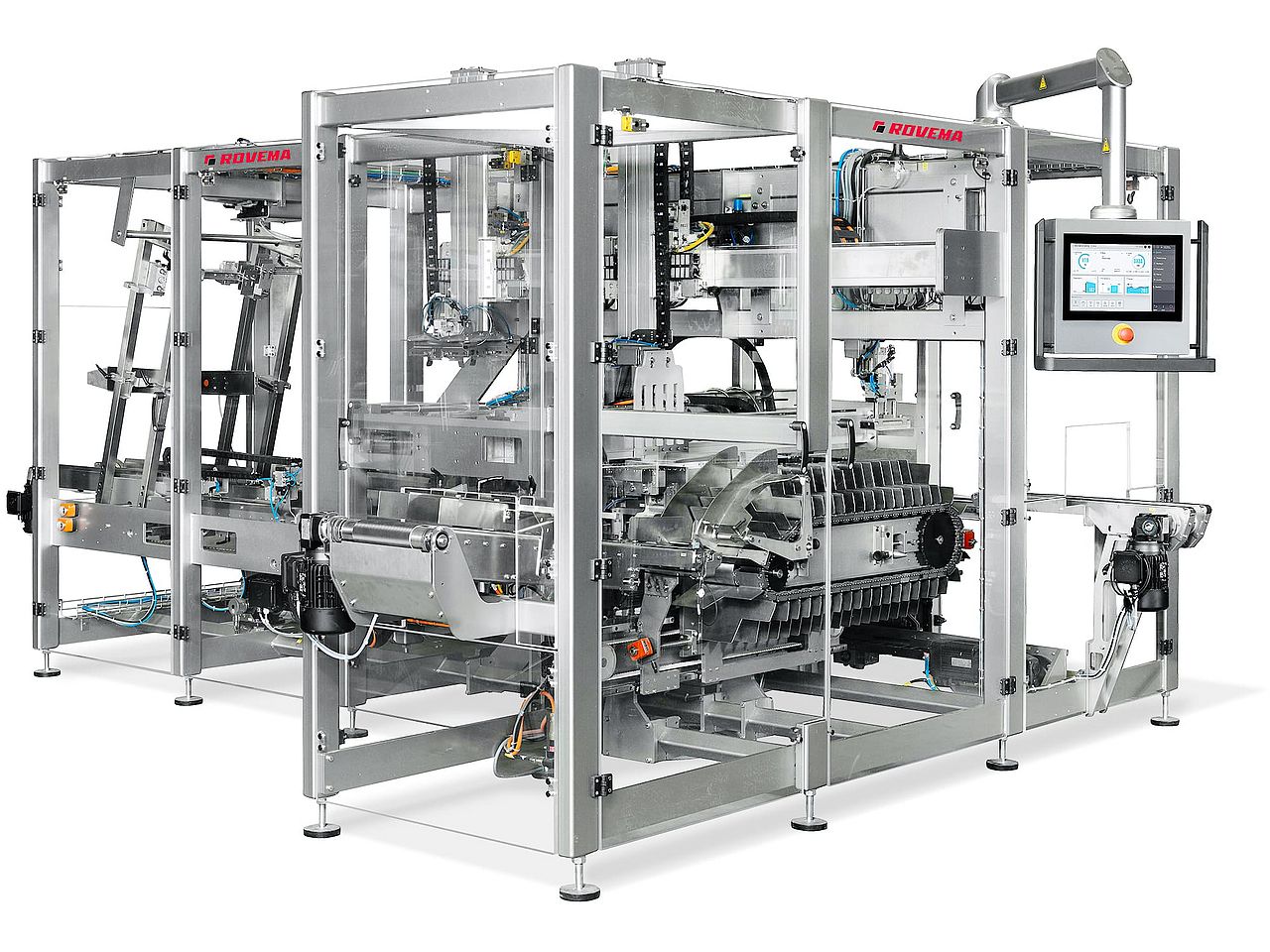

ROVEMA ETIL/ETIS are compact, direct, fast and flexible. Packers for trays and L-trays, optionally with lid or with lid in U-shape.

Gentle product handling and reliable operation.

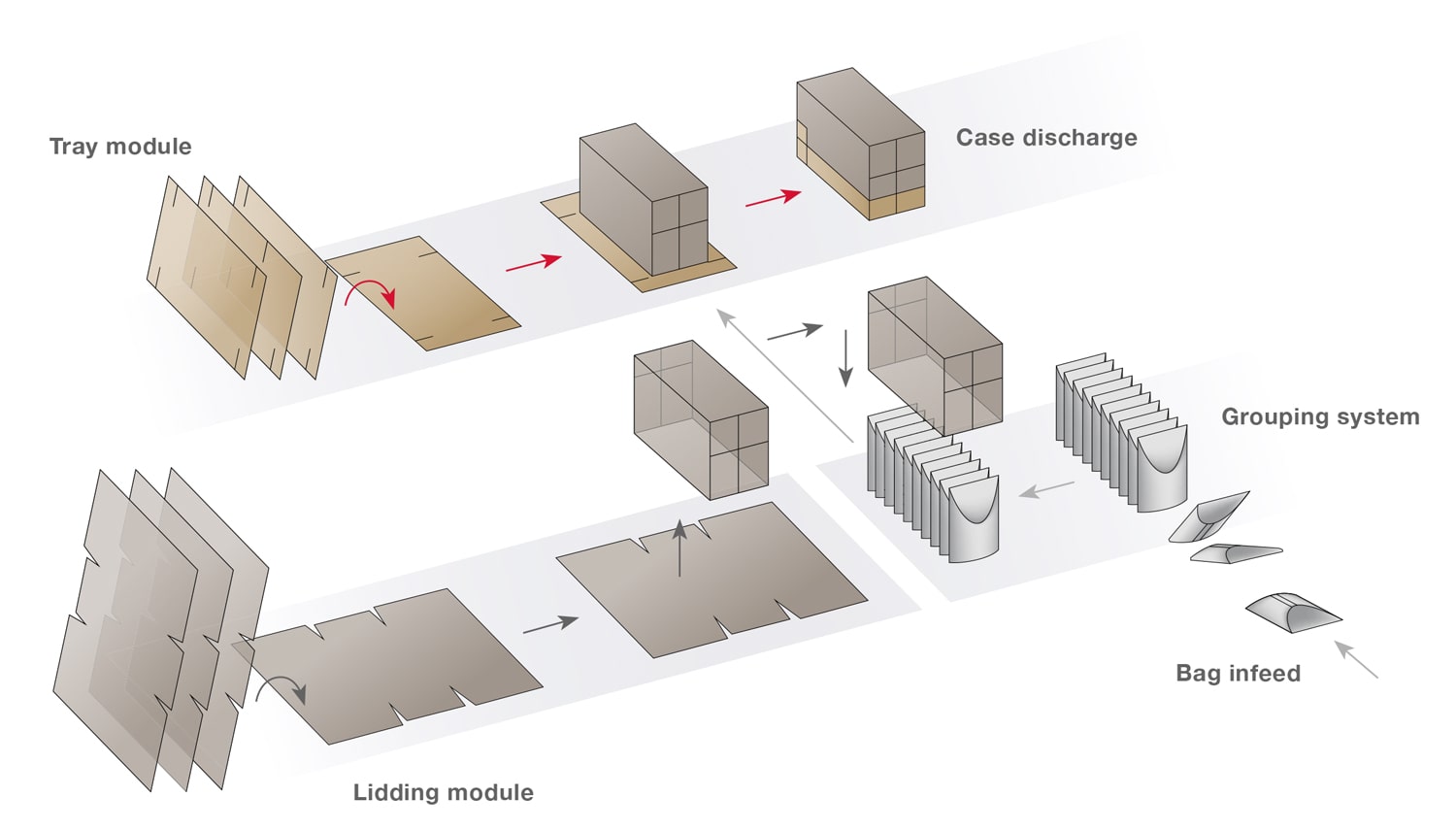

The whole packaging process is conducted with harmonious and gentle movements simply and directly at one level. This protects – despite the high output – not only the product and packaging, but also ensures functional reliability. With the hygienic design the machines are accessible and visible from all sides and thus are very easy to clean. This series is supplemented by efficient grouping systems as an ideal solution for the increasing demand of single row packing with high case output.

Highlights

  • Small foot print due to compact construction
  • User-friendly layout
  • Clearly structured and well accessible
  • Combined with innovative and efficient grouping systems
  • Gentle packaging of product
  • Fast and simple format changeover
  • Precise production of lid
  • Packaging with tamper proof
  • Innovative packaging technology
  • Intuitive, easily understandable operation, user interface with graphic support in national language

Effective and economic.
The quick format changeover is reproducible by application-specific parameters, adjustment spindles, semi-automatic format adjustment and size parts. Thus downtimes are minimized and an economic and effective production process is ensured. Integrated into the whole packaging process, the level of automation will be increased at an excellent price-performance ratio.

Final Packaging

Endverpackung Typ offenes Tray

Open Tray

Endverpackung Typ schräges offenes Tray

Inclined Tray

Endverpackung Typ Tray mit Deckel und kurzer Lasche

Tray with Lid

Endverpackung Typ L-Tray mit Deckel

L-Tray with Lid

Endverpackung Typ Tray mit schrägem Deckel

Slanting Tray with Lid

Endverpackung Typ Tray mit U-Deckel

Tray with U-Lid

Technical Data

  ETIL 432 ETIL 443

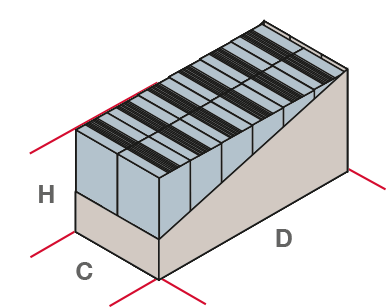

Max. case size D x C x H 400 x 300 x 250 mm 400 x 400 x 300 mm
Max. output 25 (cases/min) 20 (cases/min)
  • Buffer indexing chain as standard grouping system
  • Axis functions with linear motors and servo drives
  ETIS 432 ETIS 443
Max. case size D x C x H 400 x 300 x 250 mm 400 x 400 x 300 mm
Max. output 15 (cases/min) 15 (cases/min)
  • Indexing chain as standard grouping system
  • Conventional linear axis with servo drives
