CMV Bag-in-Box

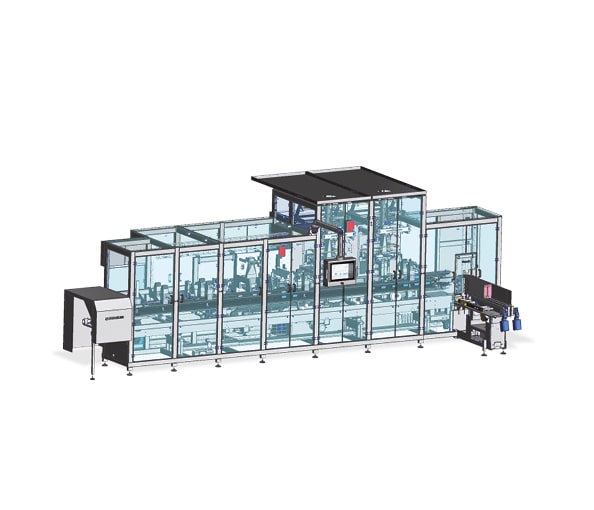

The vertical Cartoning Machine

The highlights

  • Various bag top shapes possible
  • Compact and flexible
  • Safe and secure box erection by a separately powered rotation picker with forced box erection
  • Gentle operation due to oscillating chain movements
  • Programmable 3-dimensional format change, 100% reproducible, reduces conversion times
  • Intuitive, easily understandable operation, user interface with graphic support in national language
  • Additional options for compactable products

The most compact and flexible cartoning method.
The ROVEMA CMV series can be supplied with one or two integrated Form Fill and Seal machines as a compact, flexible bag-in-box machine, optionally available with direct-fi lling facilities.

  • Bag in folded box
  • Bag without folded box
  • Product filled directly into the folding box

All this is available from a very compact machine.

Compact and flexible.
Probably the most compact bag-in-box line. This case, one or two Form Fill and Seal machines are integrated into a cartoning machine, additional conveyors and/or transfer systems are not required. Depending on confi guration and application, up to 120 folding boxes per minute can be produced. The bags are transferred vertically directly from the Form Fill and Seal machine into the folding box. The folding boxes are transported through the machine with oscillating movements so that the bag is transferred safely into the box.

Size ranges

Special sizes and production capacities on request.
  CMV 160 CMV 220
Box size A (mm) 50 – 160 (min./max.) 60 – 220 (min./max.)
Box size B (mm) 15 – 100 (min./max.) 20 – 100 (min./max.)
Box size H (mm) 80 – 320 (min./max.) 120 – 320 (min./max.)



Bag Top Shapes

90° folding of the top fin

Label as reclosure

Adhesive tape as reclosure


Product sheet
