ET

For Trays

The highlights

  • Gentle product handling is guaranteed by clear packing sequences on one level
  • Exact, reproducible format changes for short change-over times and starting phases
  • Different adjustable partial procedures via user interface offer high flexibility for difficult applications
  • Maximum performance and easy operation by automatic path calculation
  • Touch screen surface with integrated online assistance and online documentation, clear and user-friendly

The easiest way to present sales packages

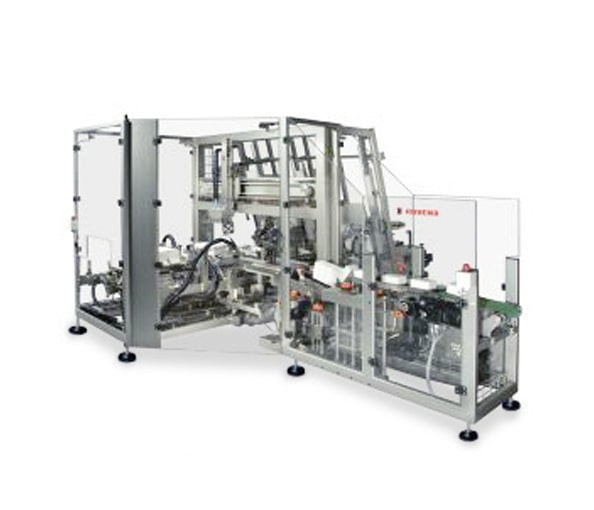

A compact machine concept enables the erecting, filling and closing of shelf-ready transport packages, from flat blanks, on a minimum of space.

In combination with a grouping system, corresponding to the requirement of the sales packaging, a system solution especially adapted to the request of the customer is available.

Technical Data

Combination with other sales packaging forms possible upon request.
  Case dimensions (WxLxH) Infeed performance
ET 443 90 x 150 x 40 mm up to 30/min
  400 x 400 x 300 mm up to 30/min
ET 463 90 x 150 x 40 mm up to 25/min
  400 x 600 x 300 mm up to 25/min

open Tray

American Tray open
