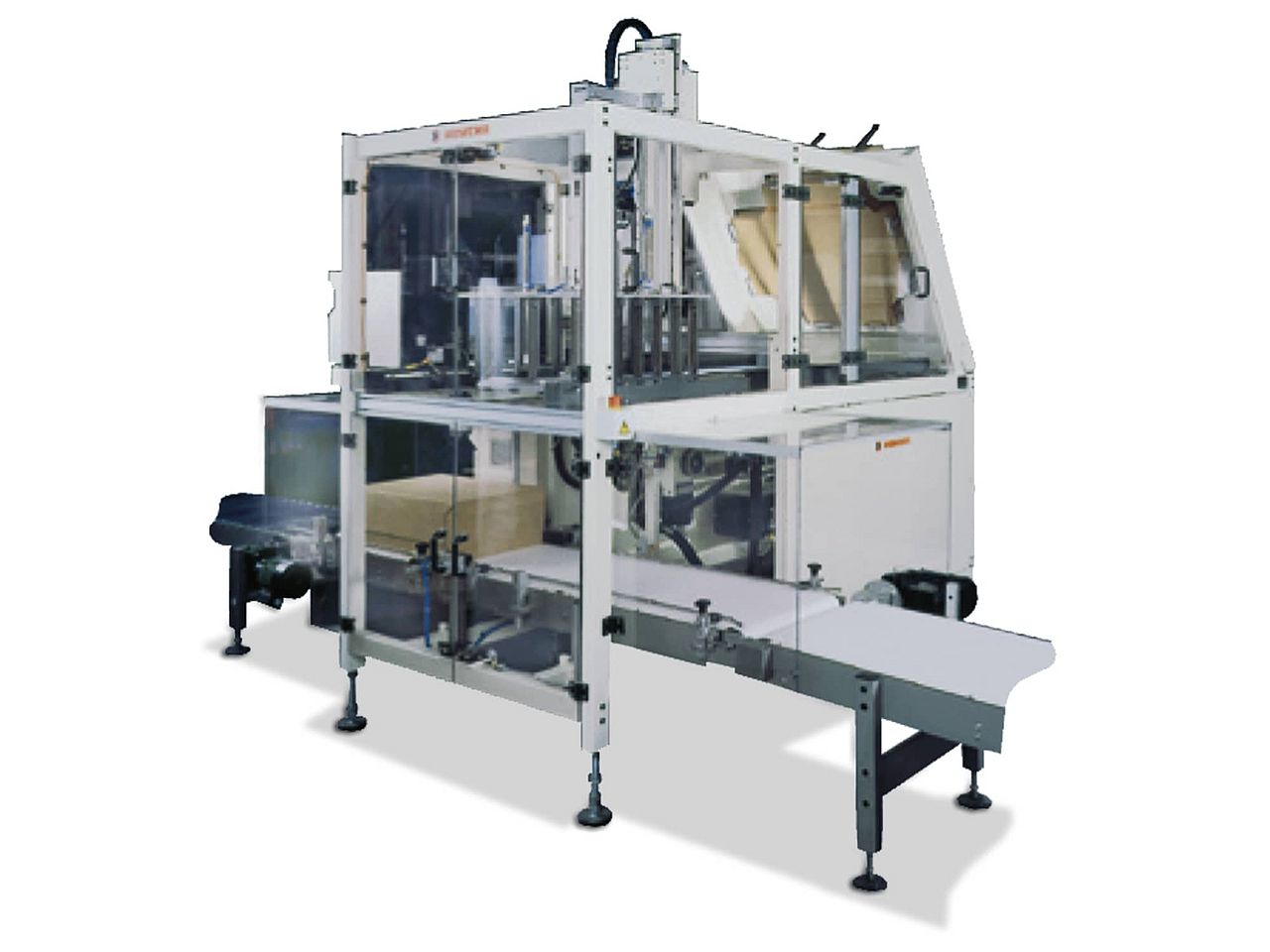

Final Packaging Machine ECL

For the closing of cartons with separate lid

The elegant way to handle transport packages.
A perfect combination of control and driving technology enables the erecting and lidding of even complex lid geometries from flat blanks.

In combination with appropriate machines for erecting and filling of transport packages or other peripheral equipment a system solution – especially adapted to the requests of the customer – is available.


  • Most precise execution of components, for highest demands of packaging quality
  • High flexibility even at difficult applications due to different, adjustable partial procedures via user interface
  • Maximum performance and easy operation by automatic path calculation
  • Large variety regarding geometry of blanks – for exceptional packaging forms
  • Touch screen surface with integrated online assistance and online documentation, clear and user-friendly

Final Packaging

Endverpackung Typ American Case geschlossen

American Case closed

Endverpackung Typ American Case offen

American Case open

Technical Data

  ECL 76 ECL 98 ECL 128
Max. blank dimensions 700 x 600 mm 900 x 800 mm 1200 x 800 mm
Performance up to 30/min up to 25/min up to 25/min
