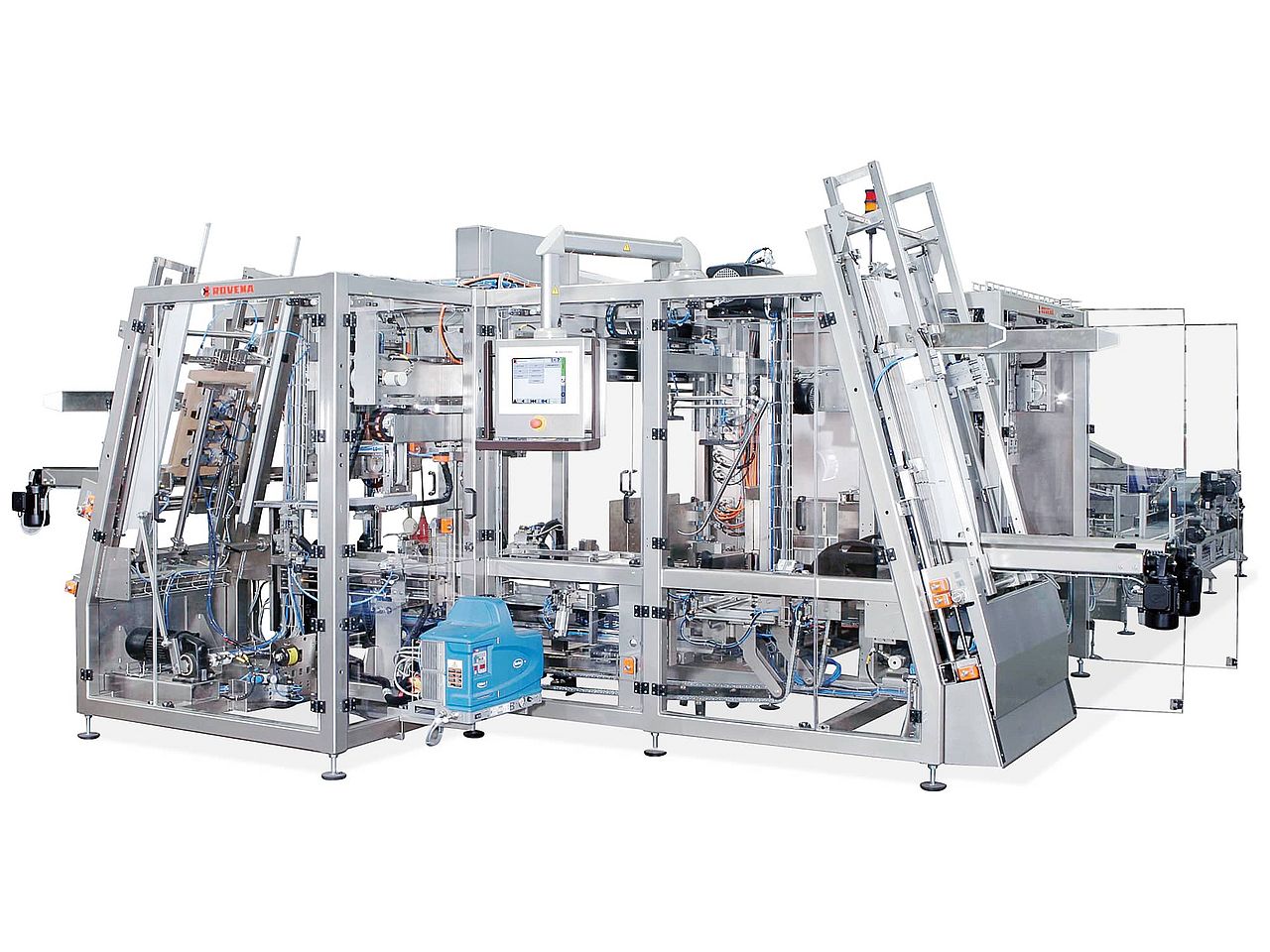

Final Packaging Machine ETO

For tray with outside lid

The elegant way to present sales packages shelf-ready.
The compact machine concept enables the erecting, filling and closing of trays with outside hooded or U-shaped lid, from flat blanks, on a minimum of space.

In combination with a grouping system, corresponding to the requirement of the sales packaging, a system solution especially adapted to the request of the customer is available.


  • Gentle product handling is guaranteed by clear packing sequences on one level
  • Exact, reproducible format changes for short change-over times and starting phases
  • Different adjustable partial procedures via user interface offer high flexibility for difficult applications
  • Maximum performance and easy operation by automatic path calculation
  • Touch screen surface with integrated online assistance and online documentation, clear and user-friendly

Final Packaging

Endverpackung Typ American Case offen

American Case open

Endverpackung Typ offenes Tray

Open Tray

Endverpackung Typ Tray mit Deckel und langer Lasche

Tray with Lid

Technical Data

Combination with other sales packaging forms possible upon request.
  Case dimensions (WxLxH) Performance
ETO 443 150 x 200 x 150 mm up to 20/min
  400 x 400 x 300 mm
ETO 463 150 x 200 x 150 mm up to 20/min
  400 x 600 x 300 mm
