Intermittent Motion Horizontal Cartoning Machine

The highlights
  • Trouble-free processing of critical folding box material due to forced box erection
  • Mirrored installation possible without diffi culties
  • Decentral drives
  • Dual inserts available with upper guides
  • Fast, reproducible and tool-free format change, additional options for further simplifi cations available
  • Intuitive, easily understandable operation, user interface with graphic support in national language
  • Hygienic design

Hygiene, ergonomics and accessibility.

To meet the hygienic design requirements, internal components and components in contact with the product are made of stainless steel. Upon request, the frame is also available in stainless steel. In the CMH-I construction, great attention was paid to the ergonomic loading height of blank magazines and solid construction of the functional relevant components.

The compact design ensures optimized accessibility which is important for fast and easy setup of the machine. With the opening of just one single door, all machine components can be directly reached by the operator.

Easily adapted to the product and format.

The format change from just one side is tool-free, quick and can be extended with half or fully automatic adjustments. Packing of soft bags and stacks of bags is supported for the optional product conditioner and top confi ner. These units also ensure smooth production when diffi cult products are loaded.

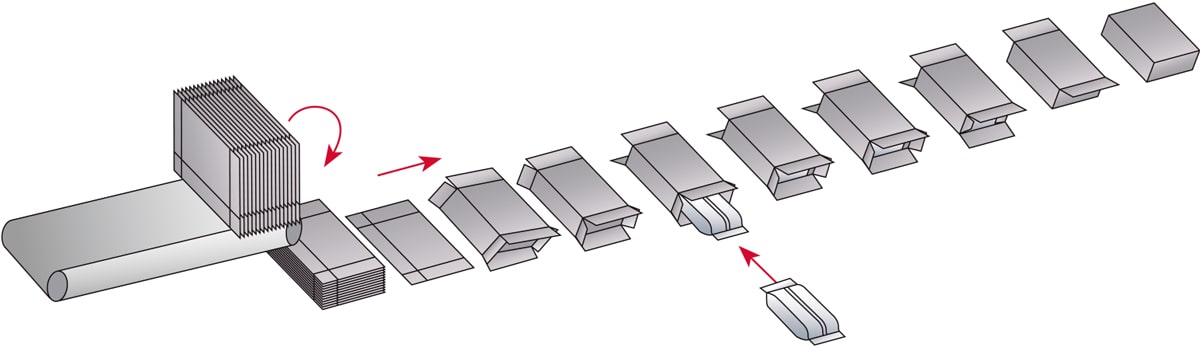

Box erection.

A special feature of the machine is the box erection, which allows to erect boxes on the left or right. Thus, a mirrored installation of two machines is possible without difficulties. The forced opening of boxes reduces troubles during erection of boxes.


Size ranges

CMH-I 9“
Box size A (mm) 80 – 210 (min./max.)
Box size B (mm) 20 – 120 (min./max.)
Box size H (mm) 110 – 300 (min./max.)
Special sizes and production capacities on request.
